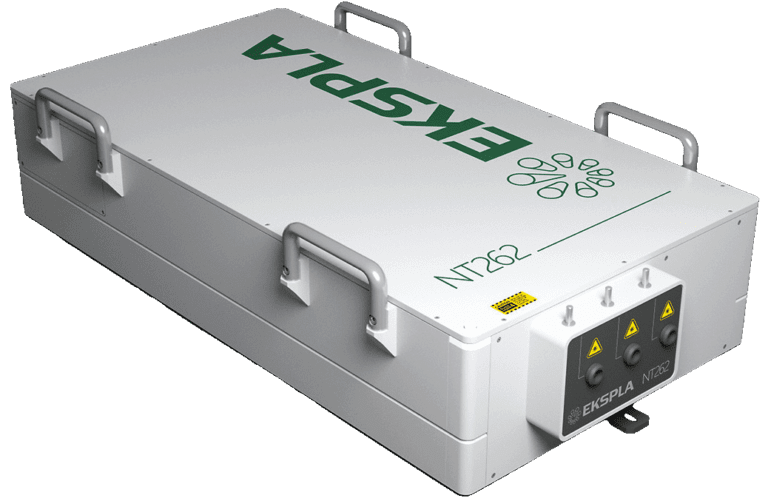

NT260 series
- sensor calibration
- high repetition rate 10 kHz
- narrow linewidth down to 1.5 cm⁻¹
NT262 is a unique narrow linewidth 10 kHz OPO. Pioneering patented technology enables powerful up to 0.7 W output in 210 – 2600 nm wavelengths range while maintaining < 3 cm-1 (typically < 2 cm-1 at most wavelengths) linewidth that is highly beneficial for traditional and specific applications requiring narrow linewidth and high spectral brightness pulses. Thus, besides the most of popular applications, like fluorescence and pump-probe, the system is also suitable for such demanding applications where high resolution and narrow linewidth are required, like the calibration of detectors and spectroradiometers, metrology or gas spectroscopy.
High 10 kHz repetition rate and hands-free wavelength tuning makes easy and fast experiment data collection as never before. The system is highly stable, ensures excellent short and long-term energy and power stability, has smaller M2 value if compared with traditional OPO systems. In addition to superior specifications, the laser is highly reliable due to low generation threshold and easy running regime. The system fits into monolithic, rugged housing that ensure high reliability and low costs of maintenance.

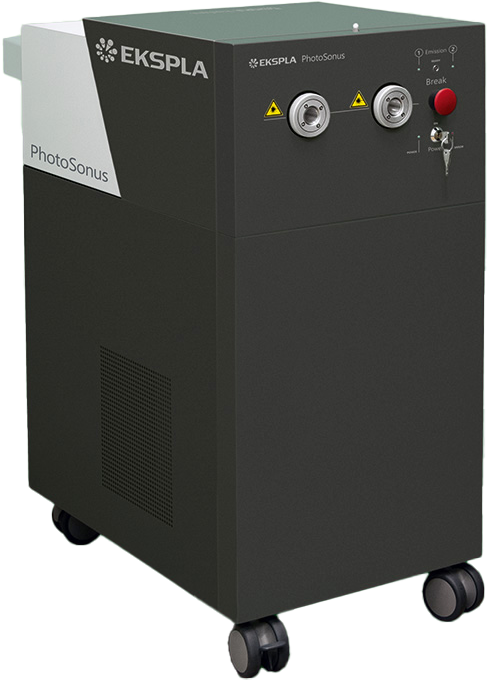

PhotoSonus M series
- Pump laser, OPO and PSU in a single mobile unit
- High 250 mJ output energy
- Wide tuning range from 330 to 2300 nm
The PhotoSonus M series from EKSPLA offers a high-energy tunable laser source for photoacoustic imaging. Featuring a compact and integrated design, it combines a nanosecond pump laser, parametric oscillator, power supply, and cooling unit. With motorized control and computer interface, it offers flexibility and ease of use. The laser provides high pulse energy of up to 180 mJ and a wide wavelength tuning range of 330-2300 nm. It also includes special options like motorized switching, attenuator, energy meter, and output shutter. The PhotoSonus M+ model offers even higher pulse energy of up to 250 mJ. Compatible with various fiber bundles, the PhotoSonus M series is an indispensable imaging source for photoacoustic systems.
Official partner of Ekspla
Ekspla is leading in the global market for scientific highly stable and reliable lasers. They have the ability to tailor the product for specific applications and/or according to specific OEM requirements is one of the main competences of EKSPLA. For customers, who need reliable laser equipment designed for long-term operation and delivered on time, EKSPLA provides optimized and tailored solutions for specific requirements that enables customers’ product or research to be unique.
